2003 Coach House Platinum
Manufacturer … Coach House Inc., 3480 Technology Drive,
Nokomis, FL 34275; (800) 235-0984; (941) 485-0984; fax: (941) 488-4095;
http://www.coachhouserv.com/
Model … Platinum 232XL

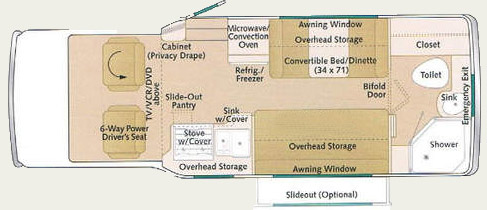

Floor plan ... Club Lounge
Chassis ... Ford E-450
Engine ... 6.8-liter Triton V-10
Transmission ... 4-speed automatic, electronic
Axle ratio ... 4.56 to 1
Tires ... Michelin LT 225/75R 16E
Wheelbase ... 158 inches
Brakes ... rear wheel antilock Hydro Boost
Suspension ... leaf with air assist
Alternator ... 130 amps
Batteries ... chassis — (1); house — (2) Interstate Group 27
Steering ... power
Inverter ... 1,500 watts, optional
Electrical service ... 30 amps with charger
Auxiliary generator ... 4-kw Onan MicroQuiet
Exterior length ... 23 feet
Exterior width ... 8 feet
Interior height ... 6 feet 3 inches
Exterior height ... 10 feet 5 inches
Gross combination weight rating (GCWR) ... 20,000 pounds
Gross vehicle weight rating (GVWR) ... 14,050 pounds
Gross axle weight rating (GAWR) ... front — 4,600 pounds; rear
— 9,450 pounds
Wet weight as tested ... front axle — 3,220 pounds; rear axle —
8,660 pounds; total — 11,920 pounds
Payload ... 2,130 pounds
Frame construction ... 1-1/2-inch tubular steel; miter cut;
welded, closed tubes
Insulation ... R-16
Fresh water capacity ... 25 gallons
Holding tank capacities ... gray water — 30 gallons; black
water — 25 gallons
Fuel capacity ... 55 gallons
Fuel requirements ... gasoline
Propane capacity ... 17.5 gallons/68 pounds
Water heater ... 6-gallon LP gas/electric
Water system ... demand
Furnace ... 30,000-Btu LP-gas with electric heat strip
Air conditioner ... 13,500-Btu ducted
Refrigerator ... 6-cubic-foot three-way automatic
Toilet ... Thetford porcelain
Warranty ... chassis — 3 years/36,000 miles; coach — 3
years/36,000 miles
Base suggested retail price ... $102,900
Price as tested ... $119,275
